The pipeline closes:

concept    FLUX.2 [pro]        front view for style, A-pose for reconstruction
mesh       Meshy image-to-3D   quad topology, 20k
rig        Meshy rigging       24-bone humanoid
animation  Blender, keyframed  thirteen groups
render     Blender, ortho      450x400 canvas, feet on y=267

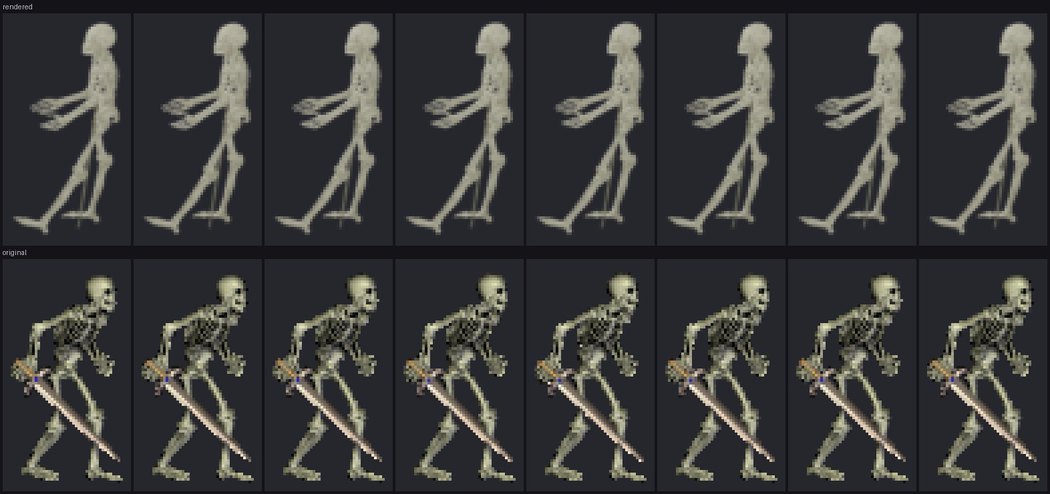

The skeleton’s idle now renders as eight frames, 79 px tall, feet on y=267, with the ground line not moving across the loop — which is what the original does and what the validator checks.

Three things went wrong on the way, none of them the thing I expected.

My own optimisation broke the rigging

The first rigging request was rejected outright:

Pose estimation failed, please provide a valid model

Orientation checked out — Y was the tallest axis, as it should be. The problem was the pose, and the pose was my own doing.

To get the concept through the proportion gate I had tightened the prompt: arms against the ribs, sword low across the body, short step. That is exactly the shape that defeats pose estimation — an auto-rigger needs to see limbs clear of the torso.

Two things had quietly become one. The proportion gate governs how the rendered frames sit on a hex; the image the mesh is built from needs a riggable neutral pose. The compact in-game stance is supposed to come from the animation, not from the concept.

So the roster now separates design — what the creature looks like, shared by every view — from pose, which applies only to the front view. A separate apose view brings its own neutral stance and skips the proportion hint entirely, because the hint fights it directly. Regenerated, it passed first time: 5 credits, 24 standard humanoid bones.

The camera has to be measured, not computed

The engine offers no way to nudge a sprite afterwards. The frame’s own canvas and where the creature sits inside it are the only anchor there is, so the camera has to be solved rather than eyeballed.

I wrote the analytic solve first: project every vertex into camera space, derive ortho_scale from the height you want, derive the shift from where the feet have to land. The arithmetic was self-consistent — span_y / units_per_px came out at exactly 79.

It rendered 51 px.

The projection and the render disagreed somewhere I never located. Rather than keep chasing it: render a probe frame, measure its alpha bounding box, correct. Measurement is ground truth, one frame at one sample costs nothing, and it adapts to whatever a future model does.

One trap inside that. Scale and position cannot be corrected together — rescaling moves the feet, so a position correction computed against the old scale overshoots. The first version diverged while looking like it was working: feet at 208, then 199, then 130. Split into two phases — height first, then position — it converges in three rounds.

Calibration also has to run after the pose is applied. The rig arrives in an A-pose and the combat stance is hunched; calibrating first left the creature 2 px too tall and 2 px too low.

The animations are written, not retargeted

Meshy’s rigging throws in a walk and a run. Heroes III wants thirteen groups: three attack directions, hit, defend, death, two turns, idle, hover.

I didn’t go looking for a motion library. The originals are short, stylised and specific — eight frames for an attack, two for a turn — and nothing in a library matches that. Retargeting onto a rig with non-standard proportions tends to go wrong on its own, too.

A shared BASE carries the combat stance and each group adds only the motion that distinguishes it. The bone names are the Mixamo lineage — Hips, Spine02, RightArm, LeftUpLeg — so the poses are written directly against them.

Where it stands

Size, anchor and ground-line stability are right. Two things are visibly not: the arms read as reaching forward rather than holding the sword low, and the value contrast is weaker than the original.

Addendum: the sword wasn’t in the mesh

I suspected the pose, so I rendered four candidate combat stances — different arm heights, different amounts of hunch.

They scored 35%, 33%, 35%, 33%.

That result was the answer: at 79 pixels the arm angle cannot move the silhouette. The pose was never the bottleneck.

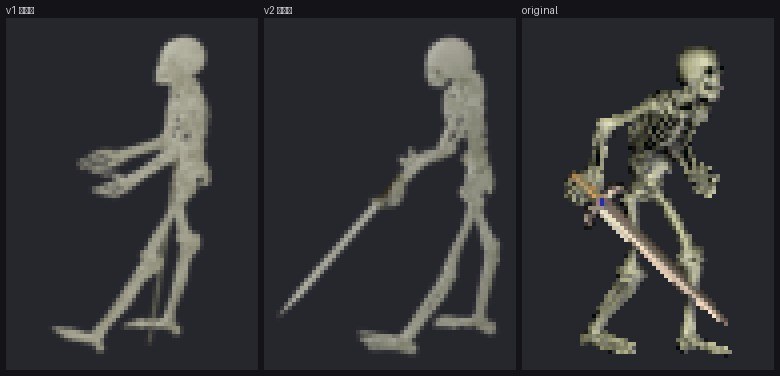

The sword was. The A-pose prompt asked for the weapon “held straight down at the side clear of the leg” — friendly to pose estimation, hostile to everything after it. Tucked against the leg it reconstructs as a thin sliver that vanishes from the side, and in the original the sword is most of what makes the skeleton readable.

Asking for the blade held out to the side, fully visible against the background and not overlapping the torso, puts it in the mesh.

Overlap actually dropped, 36% to 21%: the blade now points forward where the original angles it back across the body, which widens the bounding box (0.67 against 0.52). But the sword is rigged to the hand, so that is a pose problem rather than a missing-object problem. One of those is fixable.

Code in PR #10.
