This article records the implementation and measurements at its publication stage. Versions, costs and check counts belong to that stage. See Vampire delivery for the subsequent installation and the standalone tools for maintained commands.

I want to replace Heroes III’s creature art, running on VCMI.

Before generating anything I read the engine to find out what it requires. There turned out to be a pile of rules, almost none of them documented, and none of them error. Break one and you get a creature that looks subtly wrong, with nothing telling you which one.

The canvas is taken from the first frame

CreatureAnimation sizes the creature from the first frame of the current group:

auto first = forward->getImage(0, size_t(type), true);
fullWidth  = first->width();

But pos.w/pos.h are fixed once, when the stack is created, and every later frame is blitted through that rectangle:

canvas.draw(image, pos.topLeft(), Rect(0, 0, pos.w, pos.h));

Anything larger than the idle frame gets cropped. Anything smaller floats. So every frame of every group has to sit on one canvas, padded with transparency.

Position ignores the creature

getStackPositionAtHex derives the draw position from the hex alone — a hardcoded basePos(-189, -139) plus an offset. The creature’s own size never enters it.

Frames loaded from PNG get margins = (0,0), unlike .def frames which carry their own. So where you place the creature inside its canvas is the only anchor there is. Get it wrong and the unit hovers or sinks, with nothing downstream to correct it.

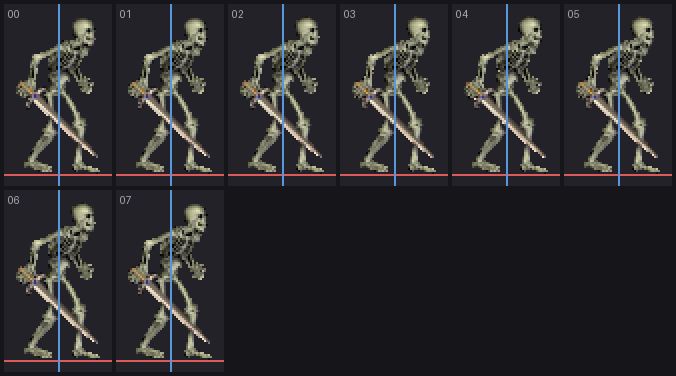

Skeleton idle loop with the ground line drawn
Eight frames of the skeleton's idle loop. The red line is the ground line the engine anchors to; the feet sit on it in all eight, to the pixel. That precision is what a replacement has to reproduce.

verticalFlip is a horizontal mirror

The engine only needs one facing and flips for the other:

reverse->verticalFlip();

CSDL_Ext::verticalFlip reverses pixels within each row — a left-right mirror. horizontalFlip reverses row order. The names are the opposite of the usual convention.

Worth knowing: it halves the art budget.

Shadow and flags live in the palette

The first eight palette indices are not colours, they are meaning: transparency, two shadow densities, and an owner-flag slot the engine tints per player.

A repaint has no palette, so those layers have to be supplied explicitly, as -shadow and -overlay companion images. Overlays are mandatory for the idle and hover groups — that white outline is what lights up when you mouse over a stack.

Scale variants share their paths

For 2x the engine looks up SPRITES2X/<name>.json, and basepath inside that JSON resolves relative to the scale prefix. So the 1x and 2x JSON should carry identical basepath and filenames; only the directory differs. A 1x set is still required even if you only care about HD.

Frame counts are yours

The JSON animation format replaces a group wholesale, “even if original animation is longer”. Use as many frames as you like; timing is tuned per creature separately.

Reading the archives while I was there

To match anything I also needed the original’s numbers: canvas size, frame counts, where the feet land. VCMI ships tools for this but they weren’t installed, and the formats are simple enough to read directly.

LOD is a flat archive: file count at offset 8, entries from 0x5c — a 16-byte name, offset, full size, four unused bytes, compressed size. Non-zero compressed size means zlib.

DEF is slightly more involved: header, 256-entry palette, then blocks of group id, frame count, eight unknown bytes, thirteen-byte frame names and frame offsets. Each frame has a 32-byte header and one of four encodings. All 2565 defs in H3sprite.lod decode; all four encodings show up.

The palette is the interesting part. From VCMI’s own translation table:

0     transparent
1,2   shadow border      alpha 64
3,4   shadow body        alpha 128
5     selection / owner flag
6,7   shadow below selection

So one def frame is really three images stacked, separated by palette index: the body, the ground shadow, and the white outline waiting to be tinted. Undo the encoding and three clean layers fall out — exactly the three a replacement has to deliver.

One DEF frame split into three layers
The same frame, split by palette index: body, sheared ground shadow, white outline.

How big the skeleton actually is

With the decoder working the target stops being a guess:

canvas         450 x 400, agreed by all 15 groups
ground line    y = 267, held to the pixel across idle frames
creature       42 x 79 idle, 158 x 136 across all actions
frames         82 over the 13 groups the engine knows
palette        223 distinct colours

Two of those changed how I think about the job.

42 × 79. That is the whole creature. The ribcage detail you see zoomed in is two or three pixels in play — texture, not shape. A design has to survive being reduced to one silhouette and three or four value masses; finer than that is noise, and it aliases differently every frame.

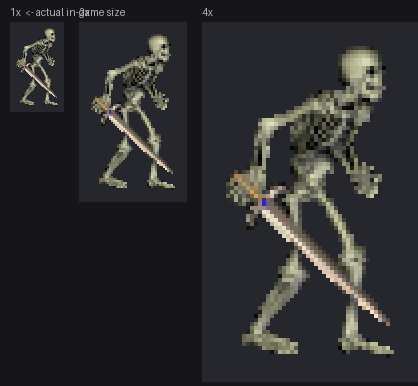

The skeleton at 1x, 2x and 4x
Left is the size the game actually draws: 42 x 79. The zooms are for our benefit, not the player's.

223 colours. This is not limited-palette pixel art. Heroes III’s creatures were pre-rendered from 3D. Going back through a 3D pipeline is a return to the original method, not a departure from it.

Wrapping up

Reading the engine cost an afternoon. Finding any one of these by staring at a wrong sprite would have cost considerably more.

The checks live in a validator now. The next person doesn’t have to read CreatureAnimation.cpp to work out why their skeleton is floating.

Code: validator and scaffolding in PR #1, the LOD/DEF decoder in PR #3.
